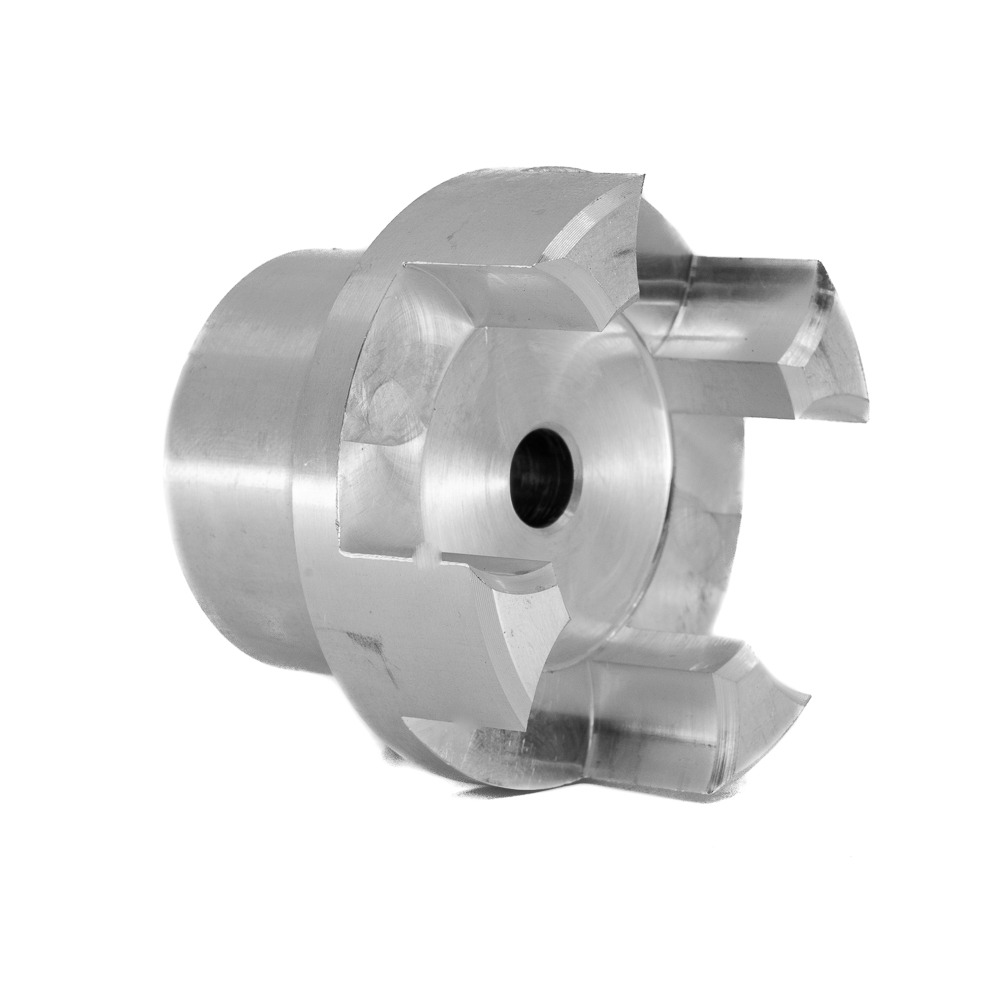

RPX Coupling hubs are manufactured in aluminum or cast iron (dependent on size) and come either pilot bore or taper bored which can be supplier in either F (Taper bush fits from the inside) or H (Taper bush fits from the outside).

They are suitable for use in almost all general mechanical and plant engineering, In spite of low weights and mass moments of inertia they are able to transmit high torques.

Weight190 g
Max Speed (rpm)

19000

Rated Torque Nm - Yellow 92-SH

10

Rated Torque Nm - Red 98-SH

17

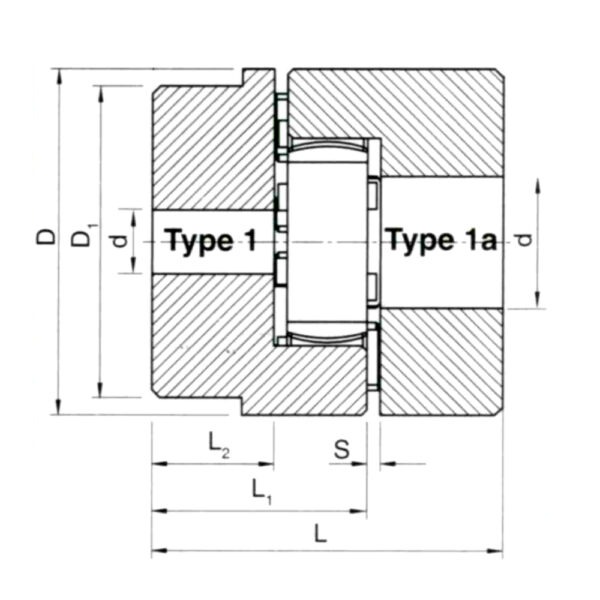

Outside Diameter. D

40

Outer Diameter. D1

32

Bore Diameter. d min

6

Bore Diameter. d max

19

Assembled Length. L

Hub Length. L1

39

Shoulder Length. L2

25

Max Bore

19

Material

Aluminum
